Electric Folding Fat Tire Bike - M3
48V 12Ah Lithium Battery
This 576Wh battery efficiently improves the range, stability and safety of bikes. A single charge can last up to 40 miles on pure electric power and over 60 miles with pedal-assist. The battery will maintain 70% capacity after 600 charges.
*Range may vary based on weight load, terrain, weather, and other factors.

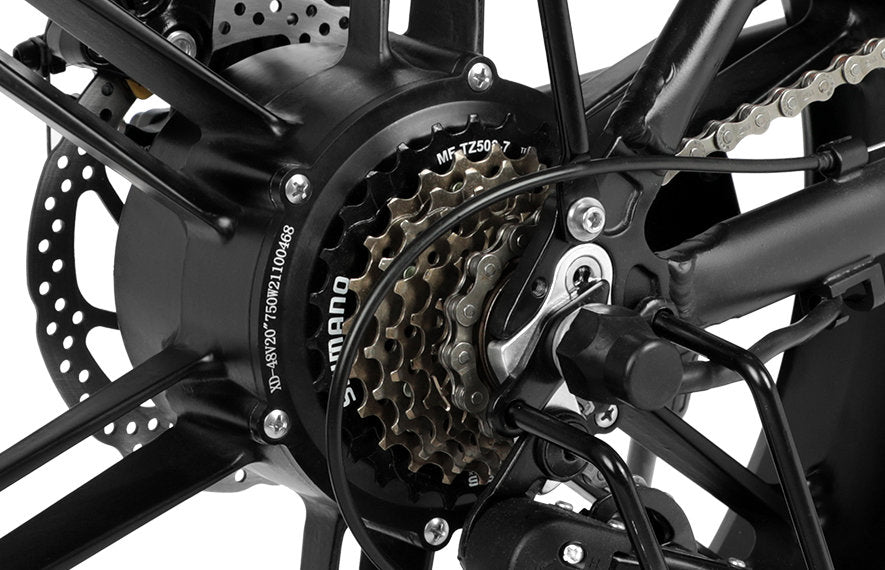

750W Brushless Motor
The 750W brushless gear hub motor can help you conquer even the most rugged terrain easily. The Variable Frequency Drive High-Speed Motor Makes the maximum nuclear payload of the Electric Bike up to 330 lbs.The mute system makes the E-Bike motor run very quietly.

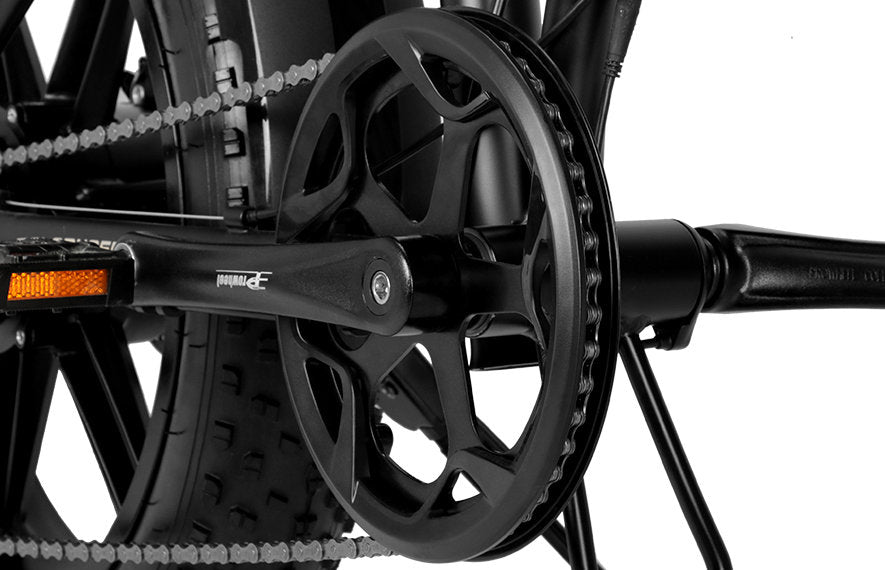

Chain Wheel with Cover
The double-sided bash guard protects the chainring teeth from strikes, and keeps the chain locked into place at same time. More, chain guide to further reduce derailments
YL80C LCD Display
The full LCD dashboard displays E-Bike performance information to the rider through an LCD screen. Backlight display provides speed, mileage, power, battery level, etc. Anti-Slip handle and Thumb throttle reduce hand and wrist fatigue.

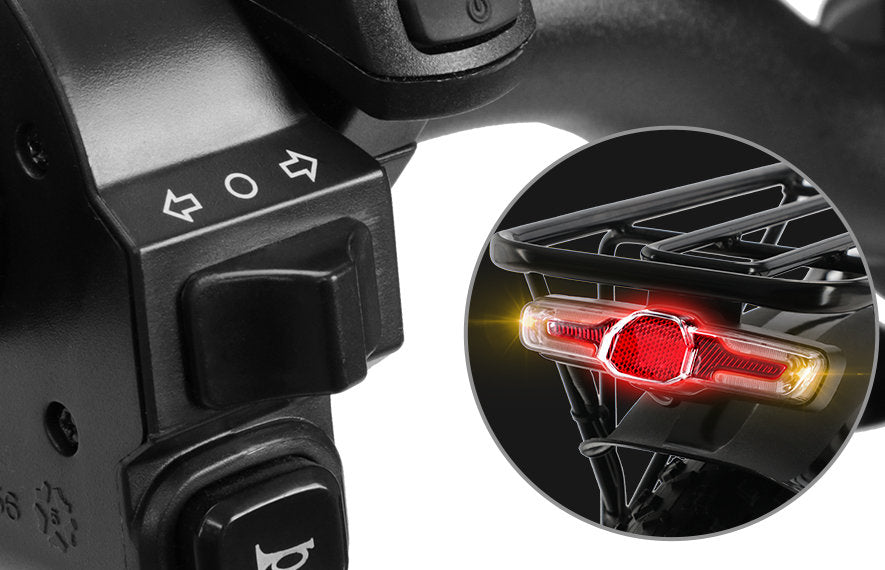

Controllable Turn Signals
You can turn on the turn signal when turning, which can better alert the pedestrians behind.
Electric Horn
Loud enough to alert anyone in the car or even others of your presence, keeping you safe during the ride.

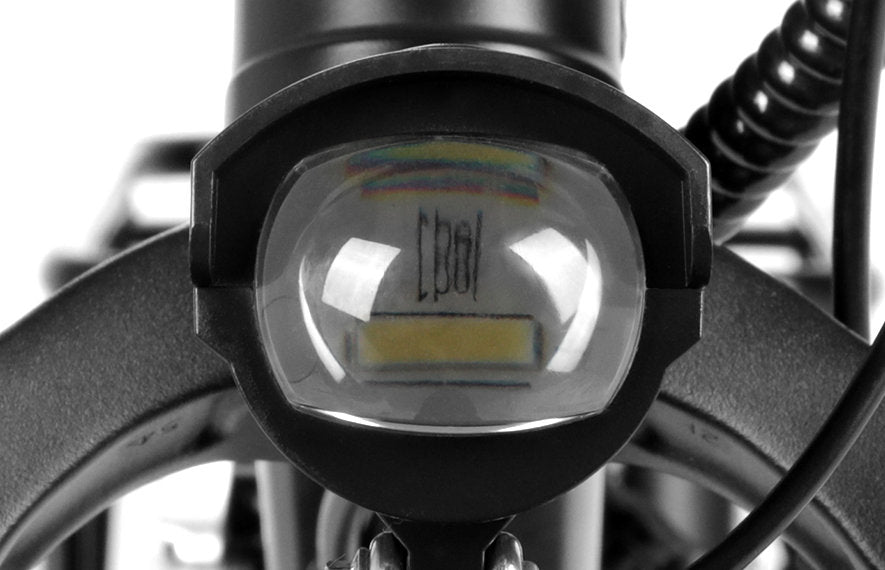

48v LED Headlight
Ride safe using the bright headlight with a unique LED circle that lightens up your way while also making you easily visible to others.

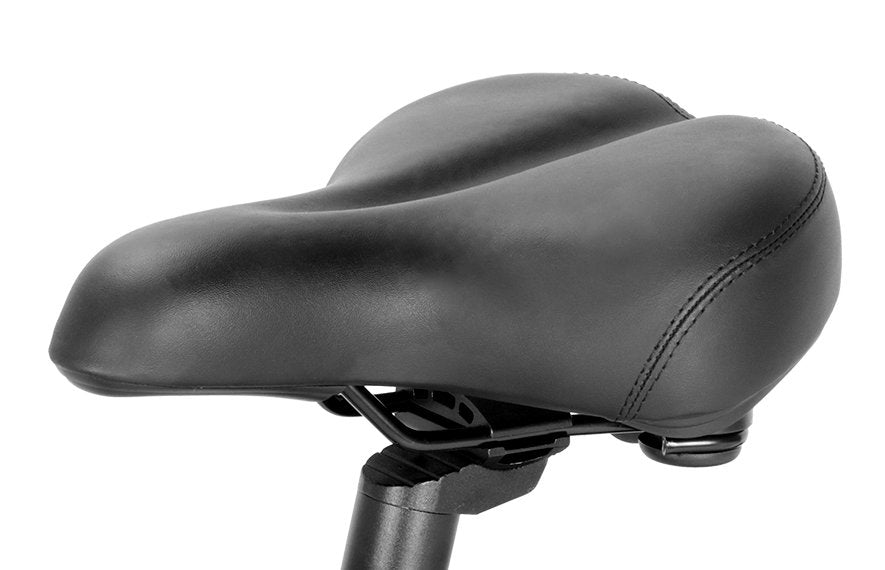

Comfortable Seat
Ride comfortably thanks to the plush seating and shock absorption
| Motor 750W Brushless Hub Motor |
Battery 48V/12Ah(576Wh) lithium battery |
|
| Display YL80C LCD display |
Throttle Thumb throttle |
Charger US standard 2.0 A smart charger |
| Pedal Assist 3, 5, 7, or 9 levels (default 3) |
Controller 48V/18A |
Crank Set 160mm w/48T Chain Wheel with Cover |
| Frame 6061 Aluminium |
Tires CST 20"*4.0 |
Shifter Shimano 7 Speed |
| Brake Mechanical Disc Brake, 160mm Rotors |
Front Fork Aluminum Suspension with Adjustable Lockout |
Kickstand Heavy duty aluminum |
| Freewheel 7-speed freewheel, 14-32T |
Pedal Wellgo Aluminum Platform |
Saddle Soft and comfortable |
| Front Light 48V LED light |
Rear Light Taillight |
Load Capacity 330 lbs |
| Wiring Water resistant connectors and wiring harness |
Rims Double Wall Aluminum 36h Front & Rear |
Bike Weight 61.7 lbs |
Ebikes are built to the IPX6 water-resistant standard. IPX6 means that your bike is resistant to water splashes from any direction. Which means it’s OK to ride or park your ebike in the rain. It won’t be harmed by spray from a wet road or raindrops. Your ebike is not intended to be submerged or subjected to a pressurized spray. Don’t use a pressure washer or sprayer to clean your ebike.

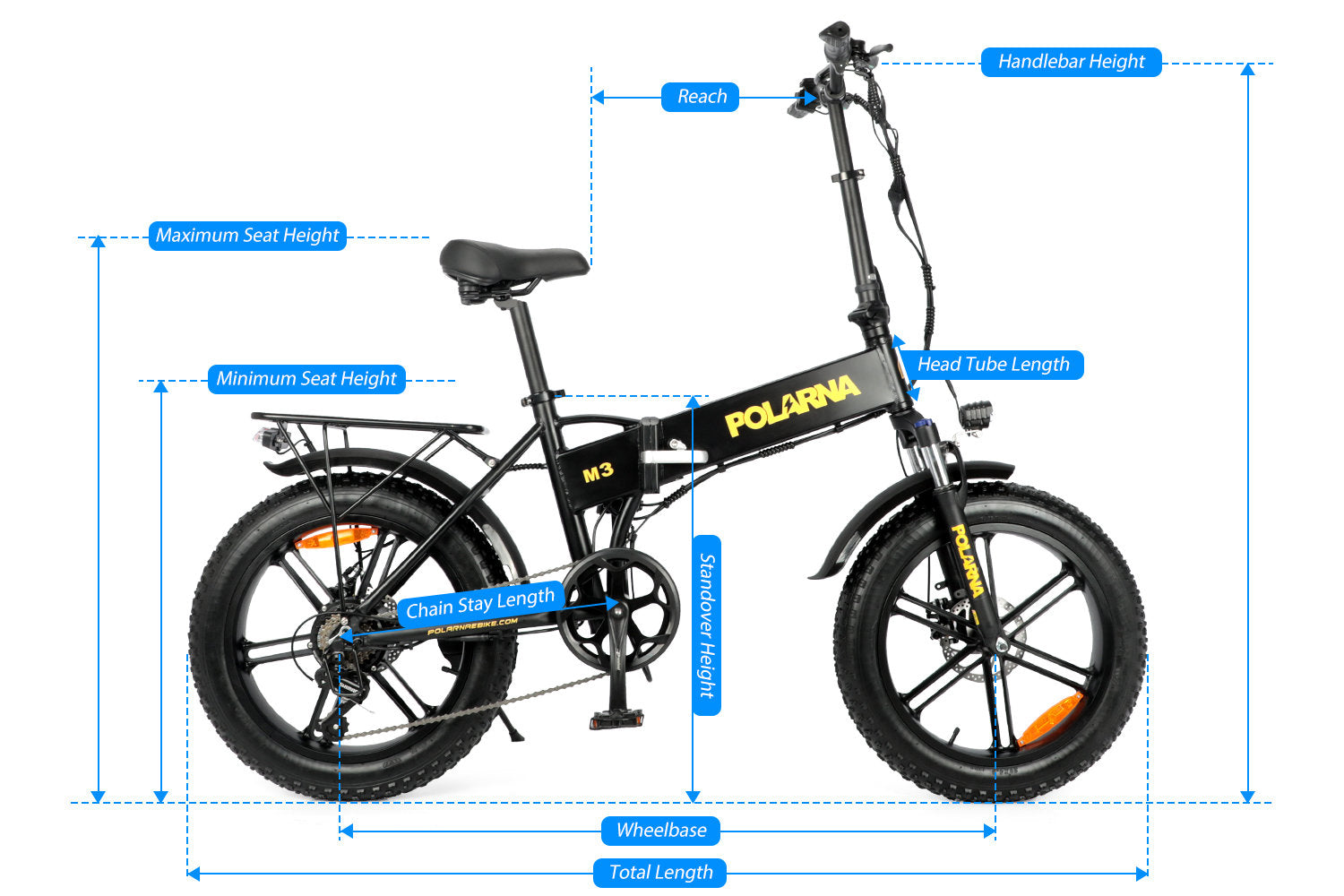

| Handlebar Height | 46.8-51.9" | Seat Max Height | 47.2" |
| Handlebar Width | 23.4'' | Seat Min Height | 32.4" |
| Top Tube | 24.4" | Wheel Diameter | 20" |
| Standover Height | 23.6" | folding size | 37"L *11.8"W *26.7"H |
| Head Tube | 5.3“ | Total Length | 65.7” |
| Chain Length | 18.11" | WheelBase | 44.4" |
| Bike Weight | 55.1 lbs | Package Weight | 59.5 lbs |
| Load Capacity | 330 lbs | Rider Heights | 5'1"- 6'4" |
